Moving your user files and configuration out of C:\

Something I learned a while back when dealing with computers in general, was to try to keep my files in a separate drive than the Operating System. The first reason for that is to be able to easily do a clean reinstall of the OS if something goes terribly wrong (which can happen relatively easy if you’re learning UNIX, dealing with obscure Windows features, or doing a lot of software installs/uninstalls), without having to first move/backup your personal documents and similar files. Another reason is to keep disk usage low in the disk/partition where the OS lives. This is particularly relevant when the OS is installed on an SSD drive, which tend to not be huge (compared to HDD drives) and can easily run out of space if we put our decades-old photo/video collection in them.

All the “default folders” that Windows uses for user documents (Documents, Downloads, Desktop, and some others) are pretty easy to move to a different drive. Just browse to C:\Users\<username>\, right click one of those folders, go to the Location tab, specify a new path, and click Move.

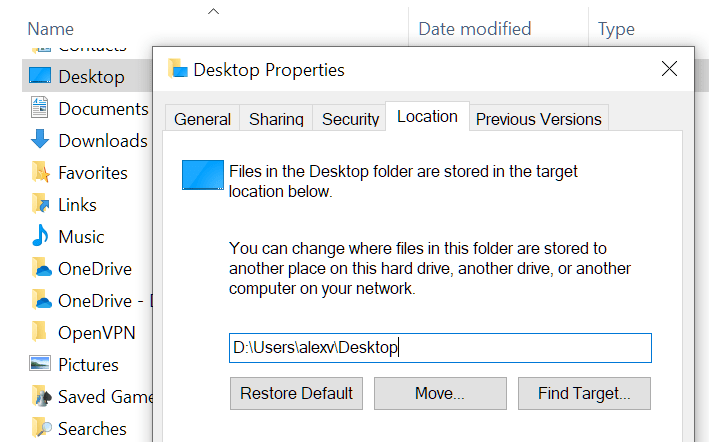

Moving Windows’ default folders to another drive

And that’s it! You have to do this one by one for each of these Windows-managed folder, but luckily they’re not that many. If you already have a lot of data in them and you ask Windows to move it for you, then be prepared to wait according to how much data there is.

But things don’t end here. Because of the first reason mentioned above, I also want to make sure that configuration files created by applications I use (at least some of them), are also kept in a separate drive. So that after reinstalling the OS and reinstalling my most common tools/applications, I don’t have to recreate my customizations too. However we don’t usually have that much control over where each application decides to write its configuration files.

In the UNIX world this problem is basically nonexistent, because the user’s home directory is where pretty much everything writes configuration files that are specific to the current user. In Windows, many applications write them to wherever the %USERPROFILE% variable points to (by default C:\Users\<username>\). Sometimes directly there, sometimes under a subfolder. Another common location is to write them under %APPDATA% or %LOCALAPPDATA%, which by default are C:\Users\<username>\AppData\Roaming\ and C:\Users\<username>\AppData\Local\. The details of how these two differ from each other are outside the scope of this discussion, but you can apply the same idea that we’re about to see.

So what can we do about those files? At least for some of them, the solution is symlinks! You can think of symlinks as virtual files/folders that you put somewhere, and tell them to point to some other location, so that anything that tries to work (read/write) with the location where the symlink lives, is actually working on the target location, without being any wiser or having to know about the redirection that’s happening.

Let’s see this in action with a real-world example. In my machine I use Windows’ OpenSSH client to connect to remote computers pretty frequently. In order to not have to learn the different parameters, ports, usernames, etc. that I have to use fore each of the remote machines, I like to use an SSH config file. A simple one looks like this:

Host vm1
	Hostname actual-name-of-computer-1.some-domain.com
	User userforcomputer1
	IdentityFile ~/.ssh/id_ed25519

Host vm2
	Hostname actual-name-of-computer-2.some-other-domain.com
	User root
	Port 2222

Which lets me type ssh vm1 or ssh vm2 and have the OpenSSH client take care of the details for me.

The issue is that the OpenSSH client expects to find this file in %USERPROFILE%\.ssh\config, i.e. C:\Users\<username>\.ssh\config. But that file is definitely something that I want to keep with the rest of my data, so a OS reinstall doesn’t wipe it out. And there’s no way to tell this particular application to always look for the config file somewhere else (we can pass an extra parameter to ssh to tell it the location, but then we have to remember to pass that every time; inconvenient). What we can do is create a symlink at C:\Users\<username>\.ssh\ and point it to, say, D:\Users\<username>\.ssh\ (I like to create a similar folder structure in whatever drive I move the stuff to, makes it easy to know where the original locations are). That way the OpenSSH client will keep doing what it always does, but behind the curtains Windows will be actually dealing with files in the D:\ drive instead of the C:\ drive.

To create that symlink, open cmd (specifically cmd, this won’t work from Powershell or other consoles because the executable to create symlinks is part of cmd) and run something like this:

mklink /D "<link location>" "<target file/directory>"

In our example, this would look like

mklink /D "C:\Users\<username>\.ssh\" "D:\Users\<username>\.ssh"

And there you have it! The configuration file is kept safe in the D:\ drive, while OpenSSH still thinks everything is happening in C:\.

This approach works really well for applications that use a subfolder under %USERPROFILE%, and not so well for applications that write potentially many files directly in that folder. You can create a symlink for each file and they’ll work, but you need to know exactly which files to do it for, instead of just symlinking the one folder. And now you ask “Why don’t I just symlink C:\Users\<username>\ directly?”, which is a great question. And the answer might be that you can, but I haven’t convinced myself that it’s completely safe, so I can’t say that you should. If you do a search for this, some sources say that moving the User Profiles folder to another drive will stop Windows Update from working in the future, others say that they’ve done it and had no problem updating, others that it’s only (semi)supported if you do it with special configuration alternatives when installing Windows… it’s also not entirely clear to me if symlinking the profile folder of a specific user also counts as “moving the User Profiles folder to a different drive”. As tempting as it sounds, I haven’t made the time to test it. If you decide want to try this, you’ll probably need to log in with a different account, so you can move all the files for the user whose profile you want to move (otherwise some files could be locked or actively in use) before creating the symlink. And if you do, let me know how it went.

To conclude, note that in case of an OS reinstallation, the files will be safe in the other drive, but you’ll have to recreate the symlinks.

Make sure to update to Robo3T 1.3!

Robo3T is a pretty convenient tool to work with MongoDB databases. Version 1.3 came out over a year ago, so this post might seem terribly outdated, but it’s worth putting out because I just now I realized that one of the improvements in 1.3 is that it encrypts connection passwords instead of saving them as plaintext on disk.

I had 1.2 and 1.3 installed side by side (for no good reason, to be honest) but after realizing this, I immediately uninstalled version 1.2 and deleted the folder where passwords are stored in plaintext: C:\Users\<username>\.3T\robo-3t\1.2.1\ (and earlier). If for whatever reason you’re still using version 1.2 today, I strongly suggest you install 1.3, copy your connection info if necessary (I don’t remember if it did this automatically for me or not when I first installed it), remove 1.2 and clean up after it ASAP.

Why won’t Visual Studio hit my breakpoints!?

Recently I got into a situation where Visual Studio 2019 ignored all my breakpoints, even in the simplest applications. I first thought it had to do with particular projects (I was playing around with development for the .NET runtime), but a brand new, super-simple console application showed the same behavior.

Breakpoint will not be hit.png

As you can see, Visual Studio even said that no symbols were loaded for the document. But it wasn’t even for a library I had imported, it was my own application!

Once I realized this was happening for all applications, I went menu-exploring for any options that might be causing this, and it didn’t take too long for me to find the culprit. Something I had disabled at some point while trying to stop VS from trying to load symbols for all the .NET internals, because it was causing pretty noticeable delays. It wasn’t very clear at the moment what the effect was going to be, but now I get it! “Always load symbols located next to modules” is what tells Visual Studio to automatically load the debugging symbols created next to your app when developing locally, so you probably want to make sure this is always enabled:

Unchecked box.png

You get here by opening the Tools menu, selecting Options, then going to Debugging -> Symbols, and clicking on Specify included modules at the bottom. Also of note, this is only relevant if you’ve selected “Load only specified modules” as opposed to “Load all modules, unless excluded”, like shown in the screenshot.

As soon as I checked that box and OK-ed out of all pop-ups, my breakpoints started working normally again.

Quirks of DNS traffic with Docker Compose

Recently I had a scenario where I wanted to restrict the network traffic coming out of certain processes I started inside a container, so they could only do the minimum required for them to work, and not reach anything else outside the container. In order to explain what I found, let’s imagine that my process only wants to make a HEAD HTTP request to http://www.google.com (on port 80, not 443).

It will obviously need to send packets with destination port 80, and packets with destination port 53 so it can make DNS requests to resolve http://www.google.com. So let’s implement a quick setup with iptables to accomplish this. We’ll use the following Dockerfile that installs curl, iptables, and dnsutils on top of the default Ubuntu image, so we can test our scenario.

Dockerfile

FROM ubuntu:latest
RUN apt-get update && apt-get install -y curl iptables dnsutils

And the following docker-compose.yml file to help us build and run our container.

docker-compose.yml

version: "3.4"
services:
  my-container:
    build:
      context: .
    image: /my-custom-image
    cap_add:
      - NET_ADMIN
    command: tail -f /dev/null

The scenario I want to talk about only happens when starting services with Docker Compose, not when starting containers directly with docker run, so using a docker-compose.yml file is necessary even if it feels a bit overkill. Note we specify the NET_ADMIN capability for the container, which we need so we can use iptables, and a command that will keep the container running, so we can connect to it after Docker Compose starts it.

Now we run docker-compose -p test up -d in the folder that contains both our files, Docker Compose builds the image and starts a container. We can then connect to that container with docker exec -it test_my-container_1.

Let’s start by verifying that we can make our HEAD request to http://www.google.com:


HEAD request works

Great. Now let’s set up the iptables rules discussed above and make sure they look right.

iptables --append OUTPUT --destination 127.0.0.1 --jump ACCEPT
iptables --append OUTPUT --protocol tcp --dport 80 --jump ACCEPT
iptables --append OUTPUT --protocol udp --dport 53 --jump ACCEPT
iptables --append OUTPUT --jump DROP
iptables -L -v
Set up iptables rules

We add the rule for localhost just to make sure that we don’t break anything that’s connecting to the machine itself (without it, the rest of this scenario won’t work as expected).

Now we test curl --head http://www.google.com again to make sure everything’s fine… but it says it cannot resolve the host! Furthermore, nslookup http://www.google.com times out. And checking the iptables rules we see 5 packets dropped by the last rule, but none accepted by the rule for UDP port 53. How come?

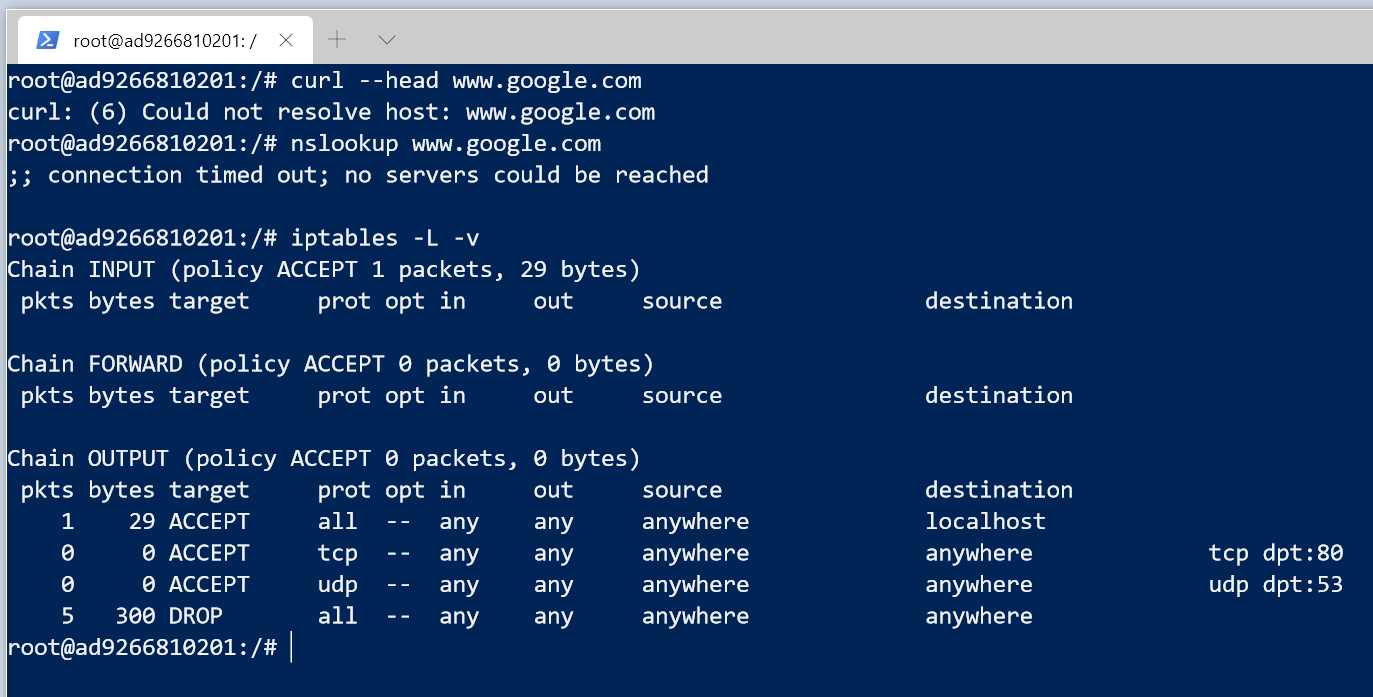

CURL does not resolve host, nslookup times out

Well, it turns out that when Docker Compose creates a service, it creates iptables rules in another table (the NAT table) to reroute certain things through the Docker infrastructure. In particular, it changes the port of DNS requests from 53 to something else. You can see this by running iptables -L -v -t nat:

iptables rules in the NAT table

Here we can see that there’s a rule mapping UDP port 53 to 53789, when the request is going to IP 127.0.0.11 (where Docker hosts its DNS resolver). So if we now add another iptables rule for that port to our setup, we’ll see that our curl command works again!

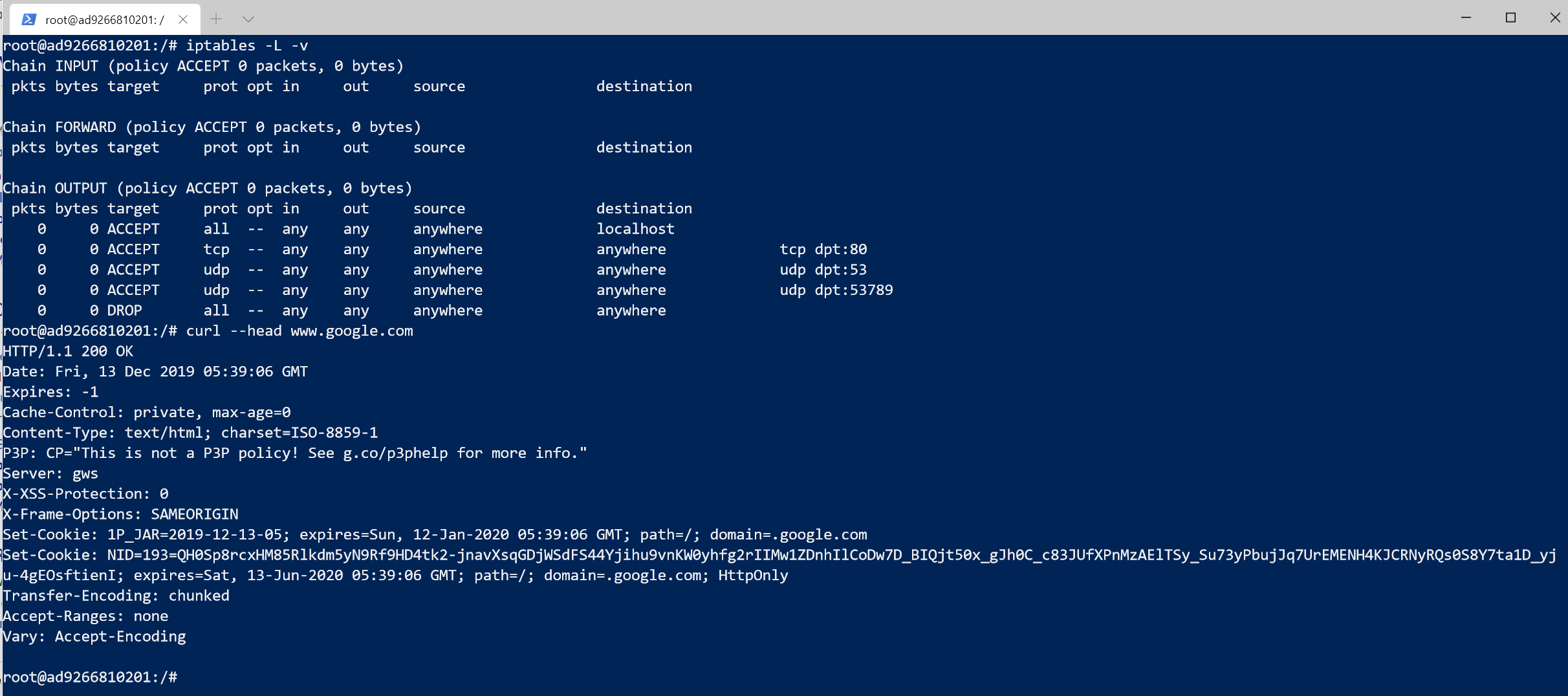

CURL works again after adding new iptables rule

However, that port is not static, so the approach that I ended up taking was to create a rule to allow any packet with destination IP 127.0.0.11, which is the one where Docker hosts its DNS server, and the only one for which it maps ports.

Conclusion

If you plan to mess with DNS network traffic in your containers and you use Docker Compose to start them, be aware that Docker sets up rules to change the destination port for DNS requests.

Opening files from OneDrive Personal Vault with Acrobat Reader DC

I’ve been using Microsoft OneDrive’s Personal Vault feature for sensitive documents for a while now and overall I’m pretty happy with it. But recently I noticed that after I unlocked the folder in my computer, double-clicking a PDF file opened up Acrobat Reader DC (my default PDF reader) but I got the following error:

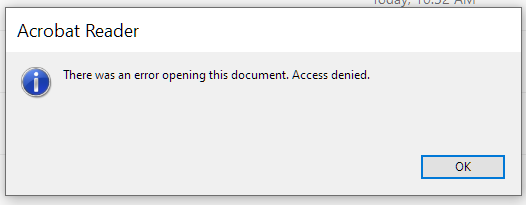

There was an error opening this document. Access denied.

After some googling I found that this seems to be an issue with Acrobat Reader’s Protected Mode feature. The intention behind it is good (sandboxing the PDFs that you open, so they can’t wreak havoc indiscriminately in the computer), but in this particular case it was hindering me.

Since I only put PDFs in my Personal Vault after I’ve “vetted” them, and I’m pretty careful with what I open in general, I decided it was fine for me to disable Protected Mode by going to Edit -> Preferences -> Security (Enhanced)​ and unchecking Enable Protected Mode at startup:

acrobat protected mode

And voilà! PDFs from my Personal Vault now open correctly when I double click them.

Partial csproj files simplify your NuGet dependencies

Recently I learned about a pretty simple feature that is super useful when working with .NET solutions that have several .csproj files, and the same NuGet package dependency in two or more of them.

The simple way to do this —what Visual Studio’s “Manage Nuget package” dialog does— is to add/update PackageReference elements in each csproj, like this:

separate-nuget-refs

Separate references to the same Nuget package in different projects

But this means that whenever you want to update this dependency, you need to do it separately in each project… and I hope you don’t have too many of them.

The DRY way to do this, is with Import elements in the csproj file, that reference other (partial) csproj files, like this:

common-nuget-refs

Shared, partial, .csproj file referenced by other .csproj files

Note that I used .csproj.include for the shared csproj file; the extension doesn’t actually matter.

Now whenever you need to update that dependency, you can do it in a single place and all the projects that reference that file will keep their versions in sync.

The only caveat I’ve found with this method is that Visual Studio’s “Manage Nuget packages” dialog doesn’t play well with it. If you use it in any particular project to update the package defined in the common file, a new PackageReference will be added to that project file, and the Import statement will remain. This won’t cause a build error, but depending on the order of the PackageReference and Import elements in your project file, might end up causing one or other version of the package to be used. So make sure that your whole team understands how these shared dependencies packages need to be updated going forward.

Don’t use a variable named TMP in your scripts that call the dotnet CLI

For a long time now, I had a script where I was passing --no-build to a dotnet test command, because otherwise it got stuck in a very weird way. The tests never started running (in fact the build never finished), and if I hit Ctrl-C to stop it, even though it apparently stopped, something kept running in the background and printing warnings to my console, on top of whatever else I was doing.

build stuck warnings

I googled keywords from the warning and couldn’t find anything relevant. Today I had to deal with this script again and decided to fix it once and for all.

For context, this is a bash script that runs on Windows (with Git Bash) and basically does the following:
– Start a test environment with several containers using docker-compose.
– Figure out which ports were exposed on the host for some of those containers and export them as environment variables (so the project being run with dotnet test sees them).
– Run dotnet test to execute the tests in a project.
– Use docker-compose to remove the environment we spun up earlier.

So I started troubleshooting my dotnet test command.

It ran fine outside the script, and also by itself inside an .sh file. So I started adding all the other pieces of the script little by little, until I found the one that made dotnet test hang. It was a line pretty much identical to this:

TMP=$(docker port ${PROJECT_NAME}_myservice_1 80)

That’s (part of) how I get the port that was exposed for a particular container, but I refused to believe that executing docker port had anything to do with the problem. So I tried renaming TMP to TMP_PORT_INFO… and what do you know, the script didn’t get stuck anymore!

I couldn’t find any official documentation about this, but it seems like dotnet build (which dotnet test runs implicitly) depends on the TMP variable to be a path to a temporary storage location for the system. A bit of research made me think that in UNIX, the relevant variable is TMPDIR, but in Windows it’s TMP.

So there you have it. If you want to avoid some painful troubleshooting, just don’t use TMP as a variable name in your scripts.

Tweak WiredTiger cache size if several MongoDB instances run side by side

I have a Linux box running 5 instances of MongoDB, each one for a different environment. The server works fine during the day, most of the time at ~90% memory usage. But recently I started seeing that one (sometimes more) of the mongod instances running there died every night when my backup script ran, courtesy of the OS’s out-of-memory Killer. Thanks to Azure I can see the pattern very clearly:

After noticing that swap wasn’t enabled for the server, enabling it, and seeing that mongod processes kept dying nightly, I discovered that MongoDB does not use swap because it uses memory-mapped files:

Nevertheless, systems running MongoDB do not need swap for routine operation. Database files are memory-mapped and should constitute most of your MongoDB memory use. Therefore, it is unlikely that mongod will ever use any swap space in normal operation. The operating system will release memory from the memory mapped files without needing swap and MongoDB can write data to the data files without needing the swap system.

So enabling swap didn’t solve my problem of dying instances, but it’s something that the server should have anyway so I left it enabled.

I kept reading MongoDB’s official documentation and ran into this:

The default WiredTiger internal cache size value assumes that there is a single mongod instance per machine. If a single machine contains multiple MongoDB instances, then you should decrease the setting to accommodate the other mongod instances.

That sounded pretty promising! I started by looking at my instances to see what the current value was. You can do that by running db.serverStatus().wiredTiger.cache in the Mongo shell, and looking for property “maximum bytes configured” in the output document.

Sure enough, the server has 16GB of RAM, and those ~7.8GB are more or less what I’d expect based on the 0.5 * (RAM-GB - 1GB) calculation in the docs. The issue is that all five instances have the same value!

So off I went and changed that setting to 3GB instead… and voilà! Stable DB server again, even with 5 separate instances of Mongo running in there.

A trip through wake-on-wireless-LAN

For several months now I’ve been struggling with an issue that showed up after I managed to set up Wake on Wireless LAN (WoWLAN) on my desktop computer, and I thought the whole process it would make for a great blog post, so here we go!

Chapter 1: got it to work!

Getting WoWLAN to work wasn’t particularly hard, it basically boiled down to two things:

  • Make sure the BIOS would allow it.
  • Configure the wireless NIC settings in Windows.

The first step was about looking for the appropriate settings in my BIOS, and setting them to the correct values. Some people might not be able to complete this if their motherboard/NIC/BIOS doesn’t support WoWLAN, and in that case there’s not much to be done other than changing hardware (or making sure it’s not just a missing BIOS update, which it probably isn’t). In my case, the only relevant setting (and maybe not even that, since I only use WoWLAN with state S3 (sleep), not S4 (hibernate) nor S5 (soft-off)) was S4/S5 Wake on LAN.

BIOS options

For the second step I went to Device Manager, double-clicked my wireless card under “Network Adapters”, and made sure that Wake on Magic Packet and Wake on Pattern Match were set to Enabled in the Advanced Settings tab; and that “Allow this device to wake up the computer” and “Only allow a magic packet to wake up the computer” were checked in the Power Management tab.

NIC settings

NIC settings - power management

And voilà! I was immediately able to put my computer to sleep, and wake it up with a Wake-on-LAN packet sent through the WiFi.

Chapter 2: an issue shows up

Things were great until I noticed that my computer was waking up on its own every night after I went to bed and put it to sleep.

I first went to Windows’ Event Viewer and found this sequence of events (the first one has the wrong time because Windows still thinks it’s the same moment as when the computer went to sleep, and the second event fixes that by syncing the OS clock with the hardware clock):

Wakeup Event 1

Wakeup Event 2

And a couple of entries later, this one:

Wakeup Event 3

It was clear that the NIC was responsible for waking up the computer, and sure enough, if I disabled its “Allow this device to wake up the computer” setting in Device Manager, the problem went away. But that setting is needed for WoWLAN to work, so I started looking for a solution.

Playing around with the other settings in Device Manager didn’t help. Intel provides some documentation on those that was pretty useful. For obvious reasons, of particular interest were NS offloading for WoWLAN, ARP offloading for WoWLAN, GTK rekeying for WoWLAN, and Sleep on WoWLAN disconnect. The first two let the OS “delegate” some work to the NIC when it is sleeping, so that some things can happen without it waking up. They are enabled by default, and it sounds like that’s the way it should be. The documentation for GTK rekeying for WoWLAN is not clear on what it does, but some additional research shows that it’s related to the PMWiFiRekeyOffload standard keyword for power management, which says “A value that describes whether the device should be enabled to offload group temporal key (GTK) rekeying for wake-on-wireless-LAN (WOL) when the computer enters a sleep state.” So just like the previous two, we want that enabled.

Finally, I just can’t wrap my head around what Sleep on WoWLAN disconnect is. The documentation says “Sleep on WoWLAN Disconnect is the ability to put the device to sleep/drop connection when WoWLAN is disconnected.” but I don’t understand what “WoWLAN is disconnected” means. I think of WoWLAN as an event, not a persistent connection. So I didn’t really mess around with this one. Maybe it’s supposed to say “disabled” instead of “disconnected”, and it lets the NIC go to sleep if WoWLAN is disabled…

I don’t remember what else I did to try and fix this, but if there was anything else, it didn’t work. After a while, I resigned myself and didn’t even try to put my computer to sleep before bed.

Chapter 3: a second attempt

Some time later I came back to the issue and this time my research first led me to the powercfg utility.

powercfg /lastwake didn’t give me any new information, it also said that it was the NIC waking up the computer:

powercfg lastwake

powercfg /waketimers (which needs to run in an elevated command prompt) said there were no active wake timers on my system, so nothing to do there:

powercfg waketimers

Just to be sure, I also went through all the tasks in Task Scheduler, trying to figure out if a scheduled action was the culprit. A couple of them seemed like potential candidates but few of them could wake up the computer, and they were disabled or had schedules that didn’t match the symptoms I was seeing.

Chapter 4: found the root cause!

Fast forward another month or so, and I found a new clue: the wake up from sleep didn’t happen only during the night, the time of day didn’t matter! My computer is usually on all day, so I hadn’t noticed that before. But putting it to sleep at any time during the day resulted in the same wake-up-on-its-own behavior after some time. And more importantly, the computer always woke up on the 41st minute of the hour.

Knowing that, I did some more research and found this question in the Intel forums, with a superbly documented reddit post by someone having the exact same problem.

The author of that post did A LOT of research and troubleshooting, and found out that his issue was related to the Group Key Update feature of WPA2, and concluded that the GTK rekeying for WoWLAN setting in the NIC probably had a bug, since it should have offloaded handling of the appropriate network packets to the NIC, without having to wake up the computer.

I wanted to really soak up all the information there and make sure I understood what was happening, so I followed the research on that post and applied it to my scenario.

My starting point was this document from Microsoft regarding WoWLAN on Windows and which specific things can wake up the computer. Besides receiving a WOL packet or WOL magic pattern, 4 things can do that:

  • AP Association Lost: i.e. the NIC loses its connection to the AP. My AP wasn’t restarting or anything similar, so that couldn’t be it.
  • GTK Handshake Error: (here I had to go and research what “GTK” was. It’s not super relevant to this post, but here I found a great explanation) I’m not sure what could cause an error of this sort, probably something like changing the WiFi pre-shared key on the AP? I wasn’t seeing any errors in my AP/Router’s log, and besides the wake-up issue, my WiFi worked fine, so I guessed it was probably not this.
  • 802.1x EAP-Request/Identity Packet Received: this only applies to WPA2-Enterprise, and since I’m using WPA2-Personal, it couldn’t be it.
  • Four-way Handshake Request Received: thanks to all the reading I had done up to this point I knew that 4-way handshake is the process by which the AP and a wireless client establish keys (PTK and GTK) to encrypt the packets sent between them, and that my AP was configured to update the GTK every hour. And my computer was restarting every hour. So… We probably have a winner!

I confirmed that this is probably the culprit by changing the GTK rekeying interval (referred to in my settings as “Group Key Update”) in my router. After that, the minute when my computer woke up changed to match the time of the AP restart, so I’m pretty confident that this is it.

Chapter 5: …but it still doesn’t work

Yet, just like for that other person having this issue, having GTK rekeying for WoWLAN enabled wasn’t helping, so I’m inclined to agree that there’s a bug somewhere in Windows or the NIC driver.

Speaking of which… I looked for updates to my NIC driver, and there was one but it didn’t help things.

A workaround for those that can do this, is to increase the GTK rekey interval in the router. I was going to set it to 12 hours (at 9am/pm) so it didn’t happen while I was asleep, but my router only allows up to 2 hours.

Conclusion

So I’m still leaving my computer on when I go to bed because I know it will wake up on its own not long after. I’ll keep my eye out for updates to the NIC driver and see if they help.

In any case, I got a lot out of this ordeal. I learned about low-level details of WiFi connections like the Beacon Frame, the Beacon Interval and DTIM, plus some other things mentioned above. So even if the problem hasn’t gone away, trying to solve it has been a very productive endeavor.

Optimizing PIA OpenVPN speed on Advanced Tomato

A while back I noticed that my ISP was throttling my speeds for most things, and that using a VPN worked around that throttling. I use Private Internet Access (aka PIA) as my VPN provider (I’d recommend them any time, if you sign up here we’ll both get 1 month free!), and I confirmed this with their desktop application running on my computer, but I wanted a way to centralize the VPN connection so I didn’t have to start one form each device in my home network.

Luckily I use open-source firmware Advanced Tomato on my Asus R7000 router, and it can run up to two simultaneous OpenVPN clients. PIA can be set up in a bunch of ways one of which is with an OpenVPN client, so it was perfect! They even have a guide on how to set it up in Advanced Tomato.

So I got everything working without much hassle… but my Internet speed was way worse than when I used the PIA desktop application. With the app I got my “line speed” of ~60 Mbps (what I expect to get from my ISP), but with OpenVPN on the router I got an average of 12 Mbps (I’ll only talk about download speeds, since my upload isn’t particularly fast anyway). Some research led me to decide that the router’s processor was the bottleneck, particularly due to the need to encrypt/decrypt traffic from the VPN tunnel. It’s a dual-core 1GHz ARM chip which apparently does not have native hardware instructions for cryptography, so it needs to do it with software and is thus limited by CPU speed. Some newer routers with newer chips are apparently getting hardware-accelerated cryptography. Keep that in mind when buying a router if you have a setup like mine.

I tried tweaking some settings in the router’s GUI but couldn’t get any real improvement, so I resigned myself to lower speeds when I wanted to have the VPN on in the router.

Today I decided to come back to the topic and see if I could improve the situation, and found two things that made a noticeable difference:

  • Overclocking the router
  • Adding the fast-io, sndbuf and rcvbuf settings to my OpenVPN configuration:
    openvpn custom settings

I’ve never been one for overclocking my hardware, but I read several posts about people doing it without problems so I went ahead and bumped my router’s clock speed from 1 to 1.4 GHz, and just with that, my Internet speed jumped from 12 to 18 Mbps. Not back-breaking, but a very appreciated 50% improvement!

But the real game changer were the OpenVPN settings, which took me from 18 to 30-35 Mbps! The OpenVPN documentation has great explanations for all possible options if you’re interested in the details. In short, fast-io can help non-Windows systems by optimizing certain code paths, while sndbuf and rcvbuf control the send/receive buffer sizes for the UDP or TCP socket.

Now, note that the specific number for sndbuf and rcvbuf will probably vary for each person/situation. The ideal value will depends on the latency to your VPN server, the reliability of the connection, and maybe other things. Regrettably, I don’t have a formula for you, so I’d suggest starting with a value of 524288 and then moving from there. In my case, 786432 was an improvement but going all the way to 1048576 gave me lower speeds. YMMV.
